Al Wasl Plaza

Copertura a forma di rete in acciaio S460 su campata di 130 m per il centro della piazza.
Indice

Informazioni

Categoria

Location

Dubai, Dubai United Arab Emirates

Year

2021

TECHNICAL SPECIFICATIONS

Owner: Expo 2020 Dubai

Architect: Adrian Smith – Gordon Gill Architecture

Gen. Contractor: Cimolai Rimond Middle East Contracting LLC

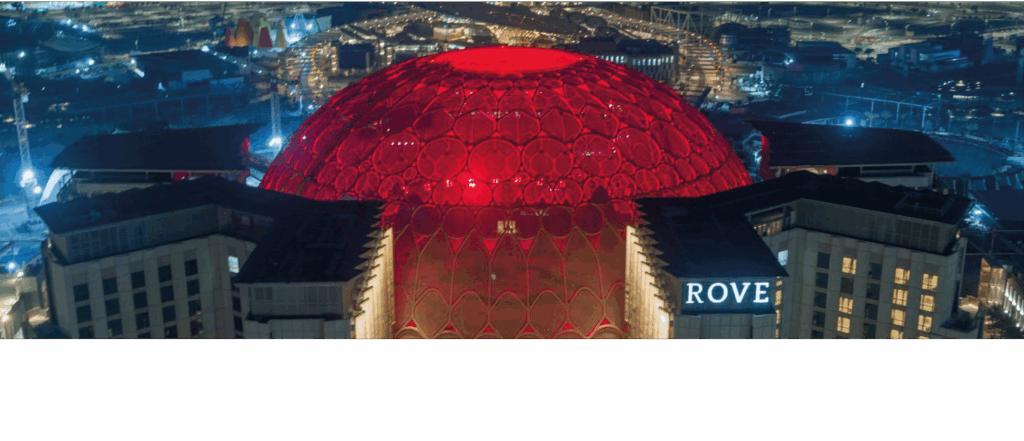

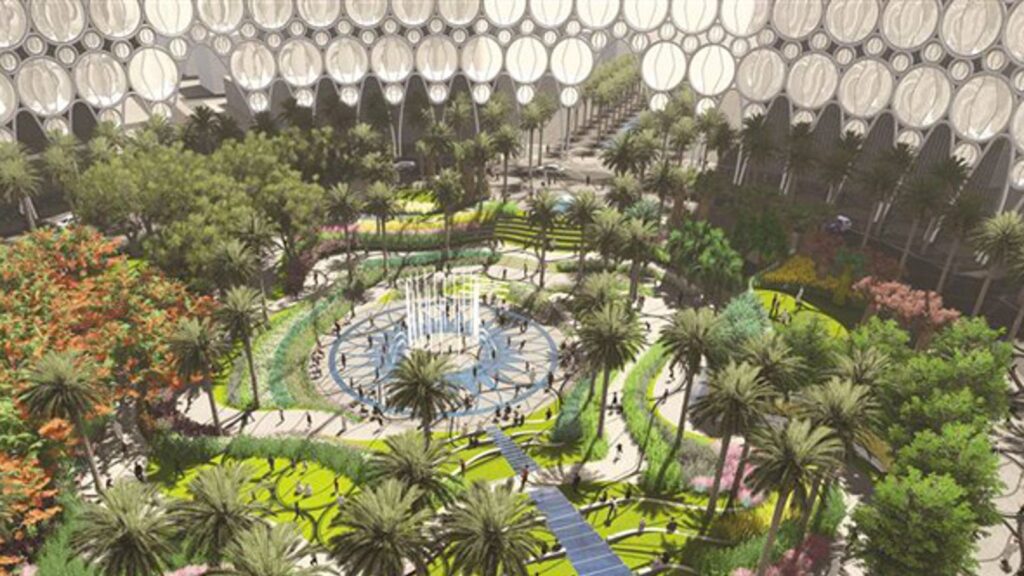

Description:  the “trellis”, or shading structure, has been designed to bear a resemblance to the Expo 2020 logo. The Trellis is a long-span shell structure than extends across the 130 m of the central plaza area and rises to a height of 67 m. It consists of grade S460 pipes forming interconnected rings that produce the pattern of the shell. Trellis pipe diameters have been standardised at 508 mm with thicknesses varying from 10 mm to 50 mm.
