TECHNICAL SPECIFICATIONS
Owner: Conseil Départemental – Département duNord France
Gen. Contractor: NGE Genie Civil

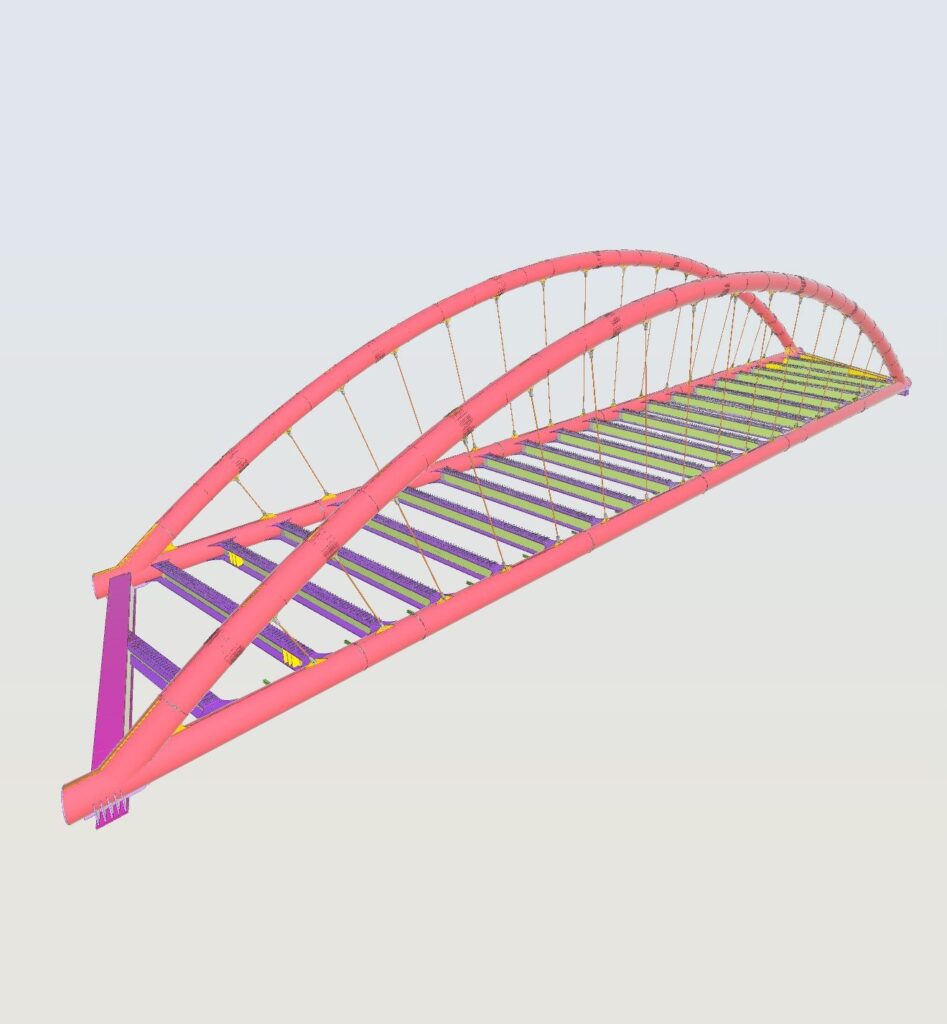

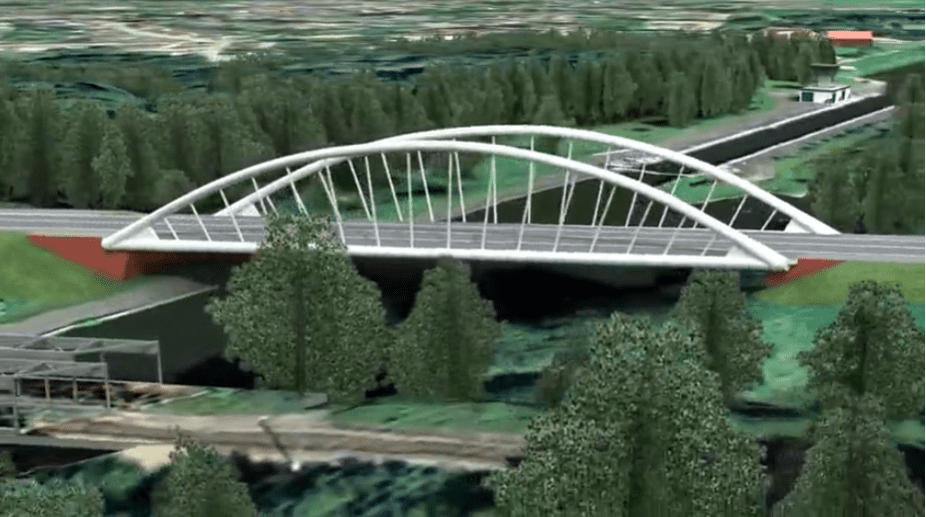

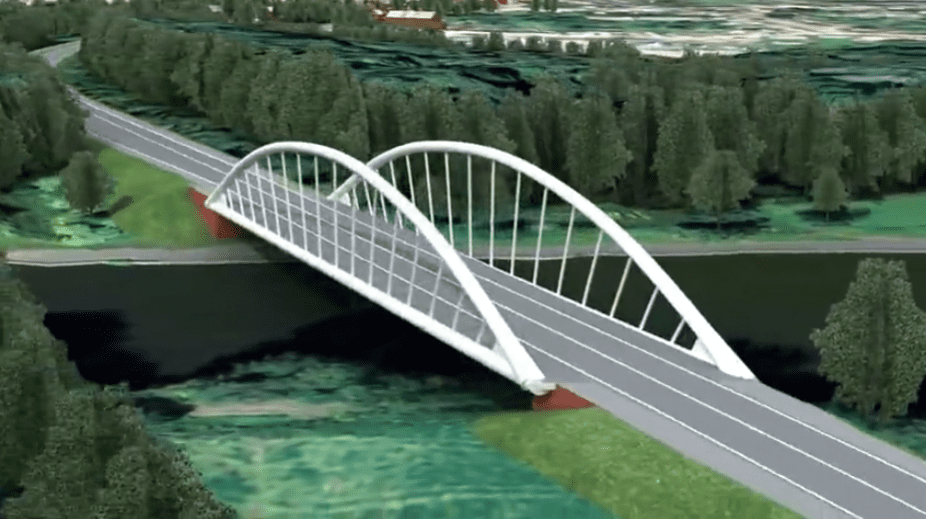

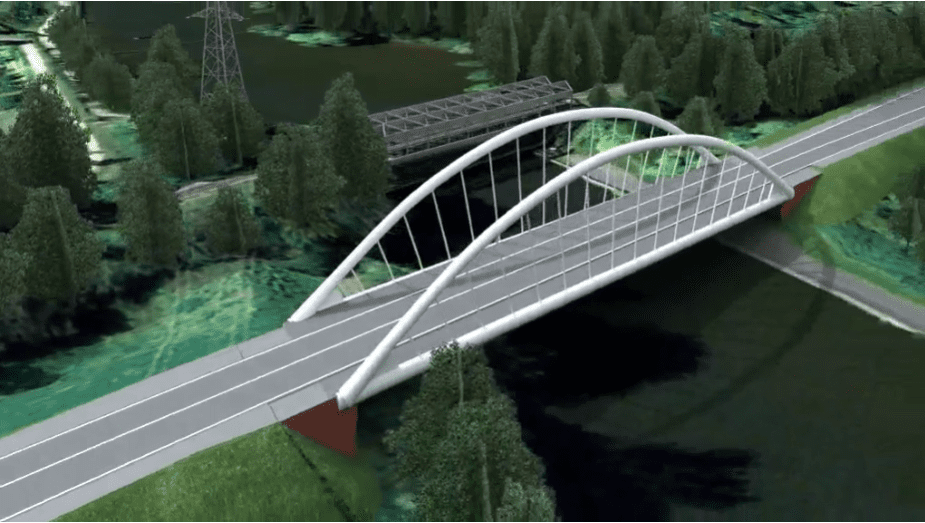

Dimensions: length 75.5 mwidth 15 mDescription: single-span arched road bridge betweenSaint – Saulve and Raismes in the North- East of France. The arch structure consistsof S355 steel tubes with a diameter of1,168 mm, and a tie rod structure of S460steel tubes with a diameter of 1,219 mm.The height of the arch is 13 m.
